This guide explains how to connect a Supabase back-end to a Draftbit front-end and then configure all CRUD operations necessary to build a simple mobile app.

Draftbit is a "pro-code" low-code mobile app building platform. Draftbit exports React Native source code that is 100% run on open-source languages and libraries.

Draftbit is back-end agnostic and connects to Supabase via REST API.

Note: For the demonstration purpose of this guide, we are using a pre-populated database in Supabase. We are calling Groceries. To follow along, rename it any way you prefer.

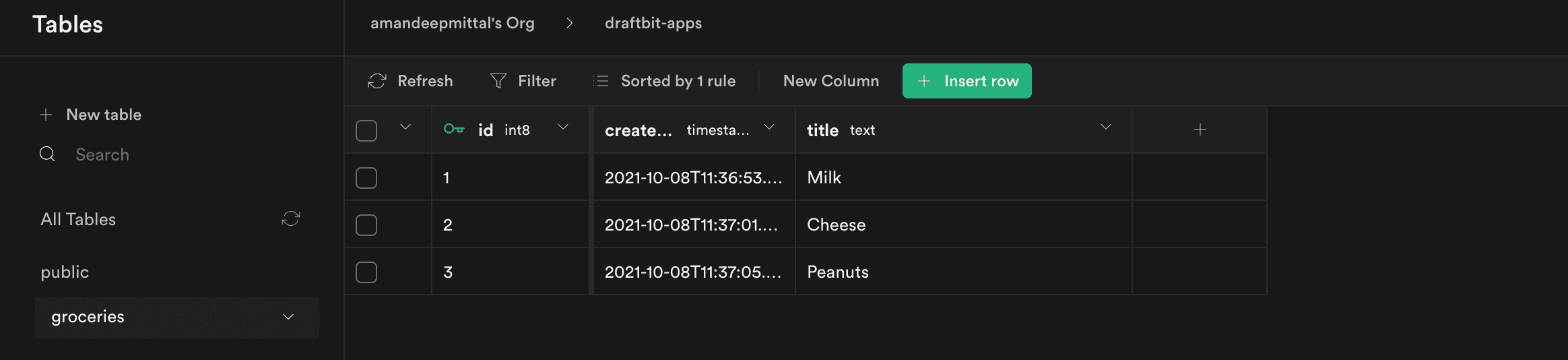

Prepopulated Database

If you don’t have a Draftbit account, create one here. Once you’ve got your account set up, Create a New App. You can select Start From a Blank App for this demo and proceed to the Builder interface.

Step 1: Get the RESTful endpoint and Project API key#

To connect the REST API in the Draftbit app, the following fields are required:

  • Base URL of the REST API, which is in the format: https://<your-domain>.supabase.co/rest/v1 where the <your-domain is a unique domain name generated by Supabase.
  • The supabase-key is the secret key.

You can find these unique values in the API settings of your Supabase account.

  • Click the Settings button from the top menu bar.
  • In Settings, select API.
  • In the Project URL section, select and copy the URL. It is the Base URL of your Supabase REST API. It will be required to make a connection to the Draftbit app.
  • Also, under Project API keys, select and copy the API key under anon. It is required for every request made to the Supabase database.

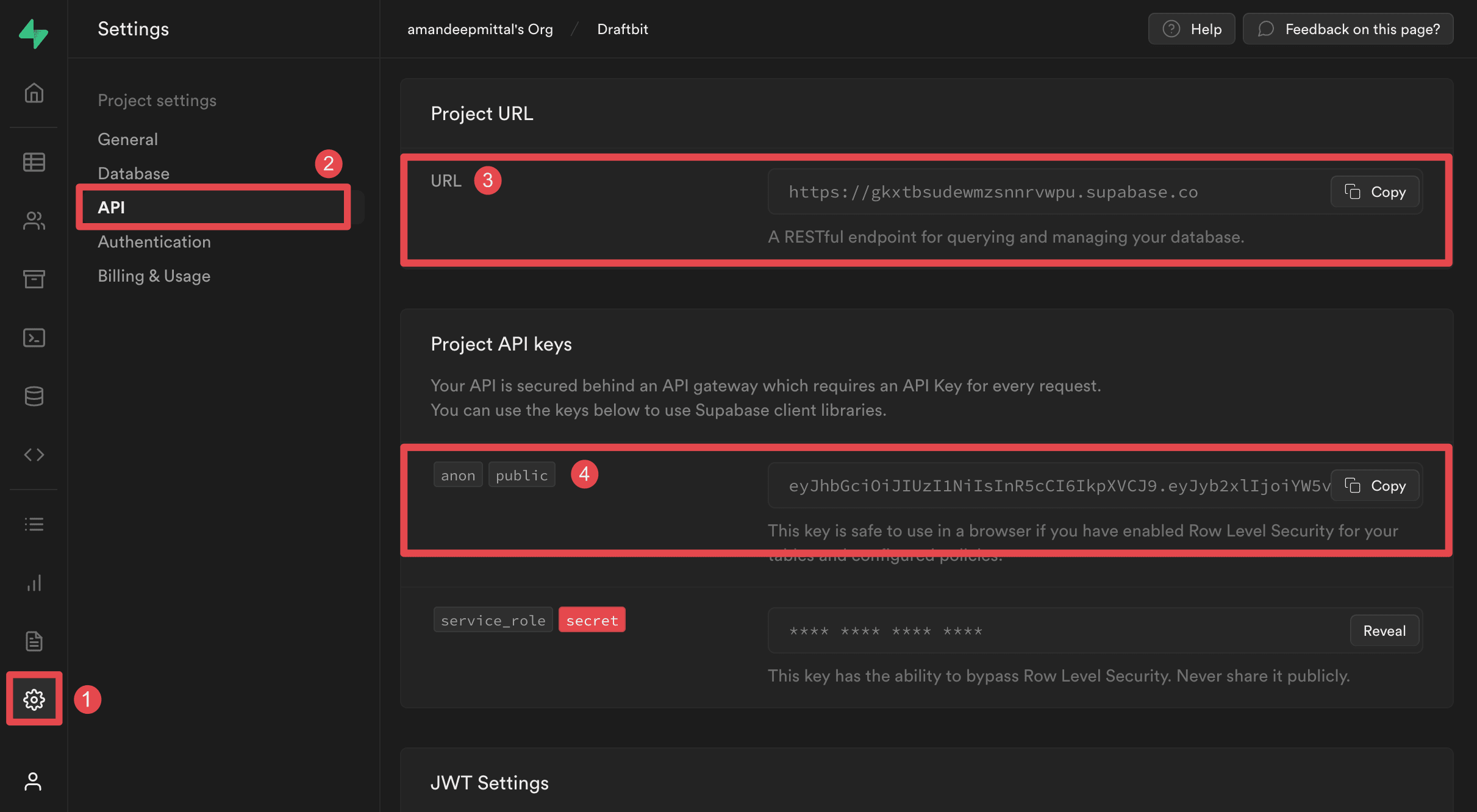

Get Supabase connection string

Step 2: Save Supabase API key as Authorization Header in Draftbit#

To authorize your Draftbit app with Supabse, in the builder interface:

  • Open the Settings tab from the top menu bar.
  • In Project Settings, navigate to App Variables.
  • Enter a name to access the API Key such as Authorization_Header. When making the service connection in the next section, it will be passed as the value for the header Authorization.
  • The value of this key requires you to enter an authorization token that starts with syntax Bearer <your-api-key> (the space between Bearer and <your-api-key> is required). Click Add after adding the value.
  • Enter another key name to access the API Key such as Api_Key_Header. When making the service connection in the next section, it will be passed as the header apiKey value.
  • The value of this key requires you to enter an authorization token that starts with syntax is <your-api-key>. Click Add after adding the value.
  • Click Save to save these keys and close the modal.

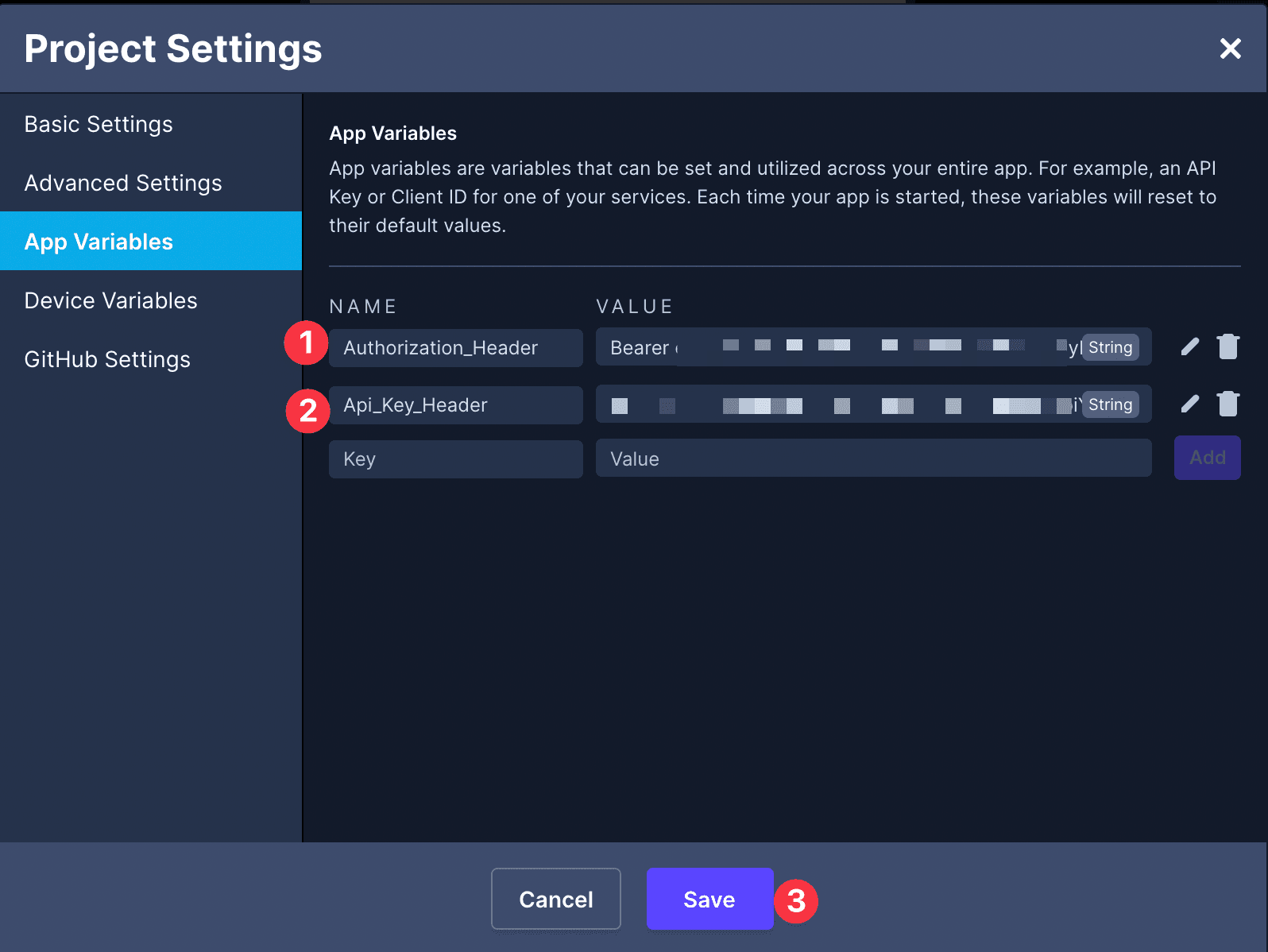

Add header values in Draftbit

Step 3: Add Supabase RESTful endpoint in Draftbit#

In your Draftbit builder interface:

  • Open the API & Cloud Services modal from the top menu bar.

  • From the Connect a service menu, click on Rest API.

  • In Step 1: Enter a name for your REST API. Then, paste your Base URL (from the first section) into the Base URL field.

  • In Step 2: Under Key add Authorization and apikey. Then, under Value, select the global variables (from the previous section) to add the actual values for both keys.

  • Click Save.

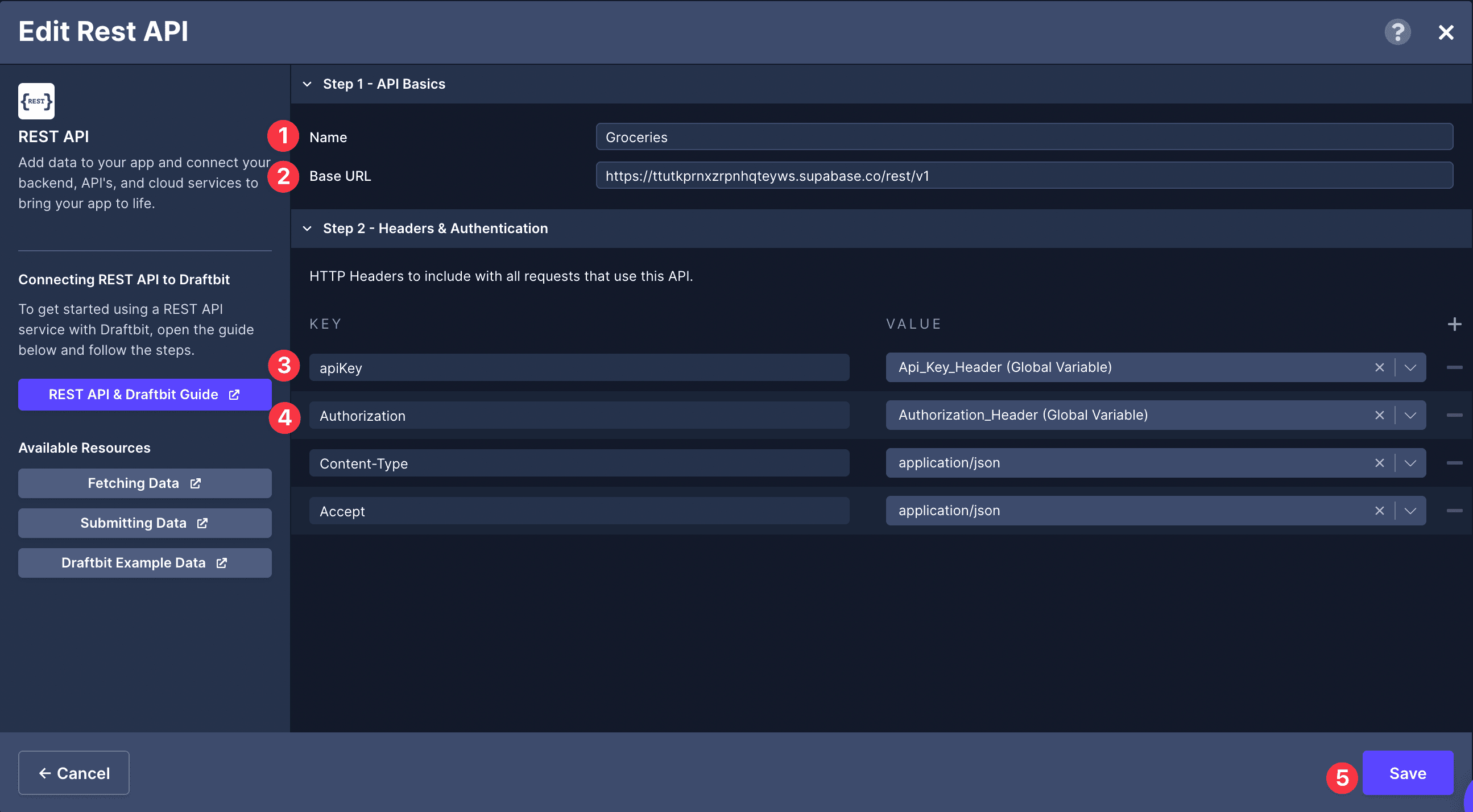

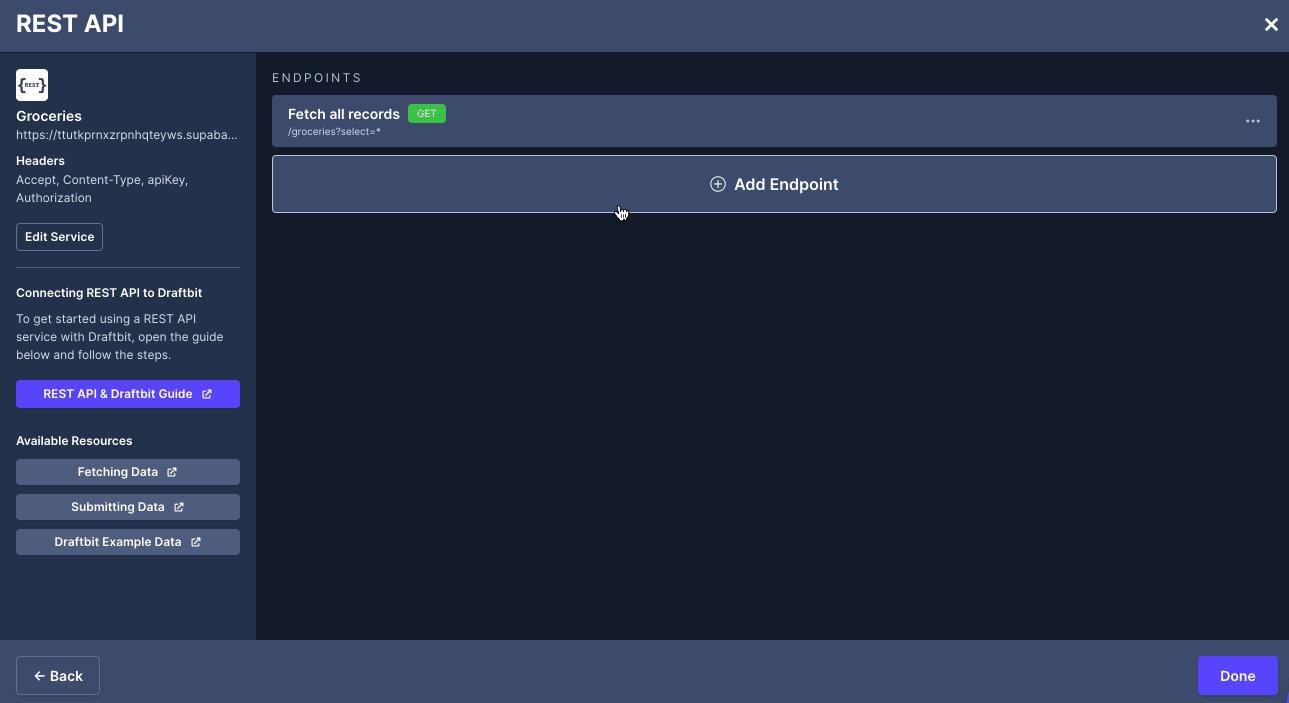

Create a API service in Draftbit

Making API requests with Supabase & Draftbit#

GET request to Fetch all records#

In this section, let's populate a Fetch component with all the data from a simple Supabase and then display the data fetched from the Supabase data table in a List component.

For reference, here is a how the Components tree looks like for this screen:

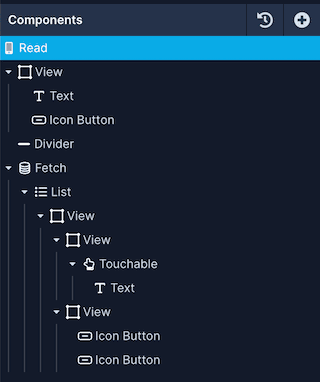

Components tree

The next step is to create an endpoint. Let's try fetching all the data using a GET HTTP request. Select the Supabase service in the API & Cloud Services modal, and then:

  • Click Add endpoint.
  • In Step 1: enter the name for the endpoint. Make sure the Method select is GET.
  • In Step 2: add the base name path: /groceries/select=*, where groceries is the table name in Supabase.
  • In Step 4: click the Test button next to the Endpoint input to verify the response coming from the Supabase.
  • Click Save.

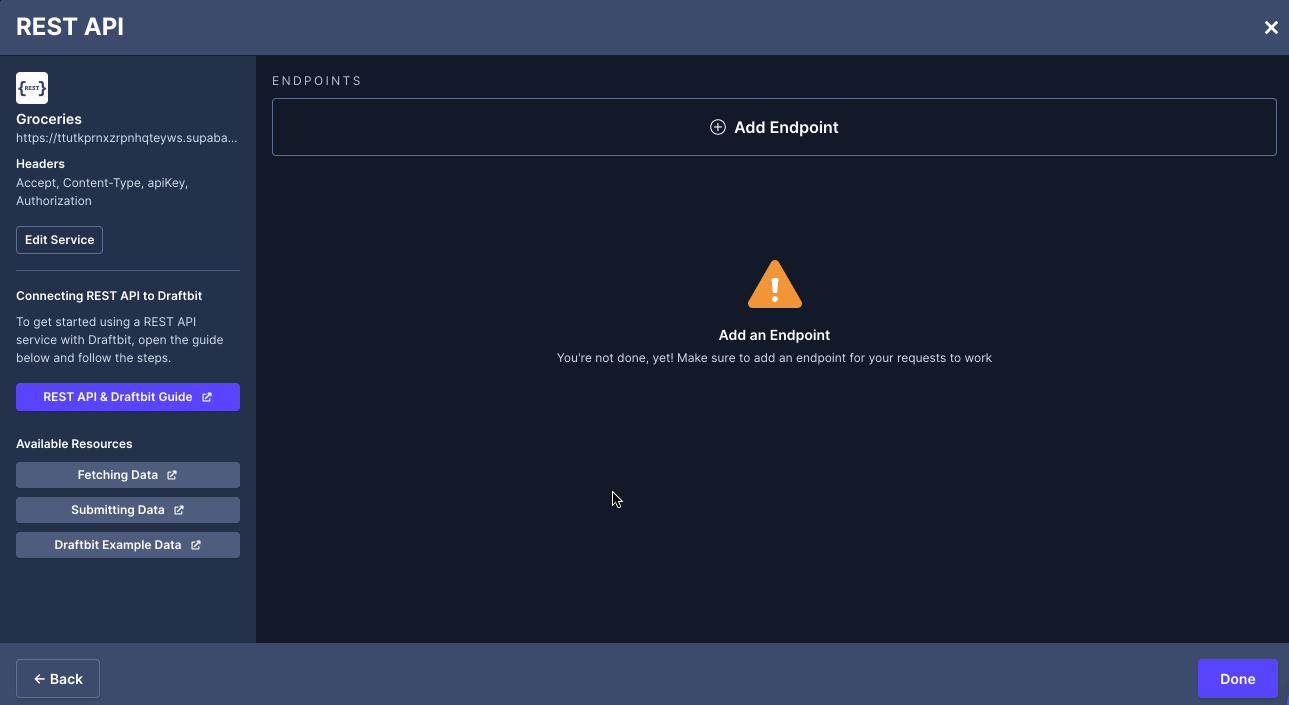

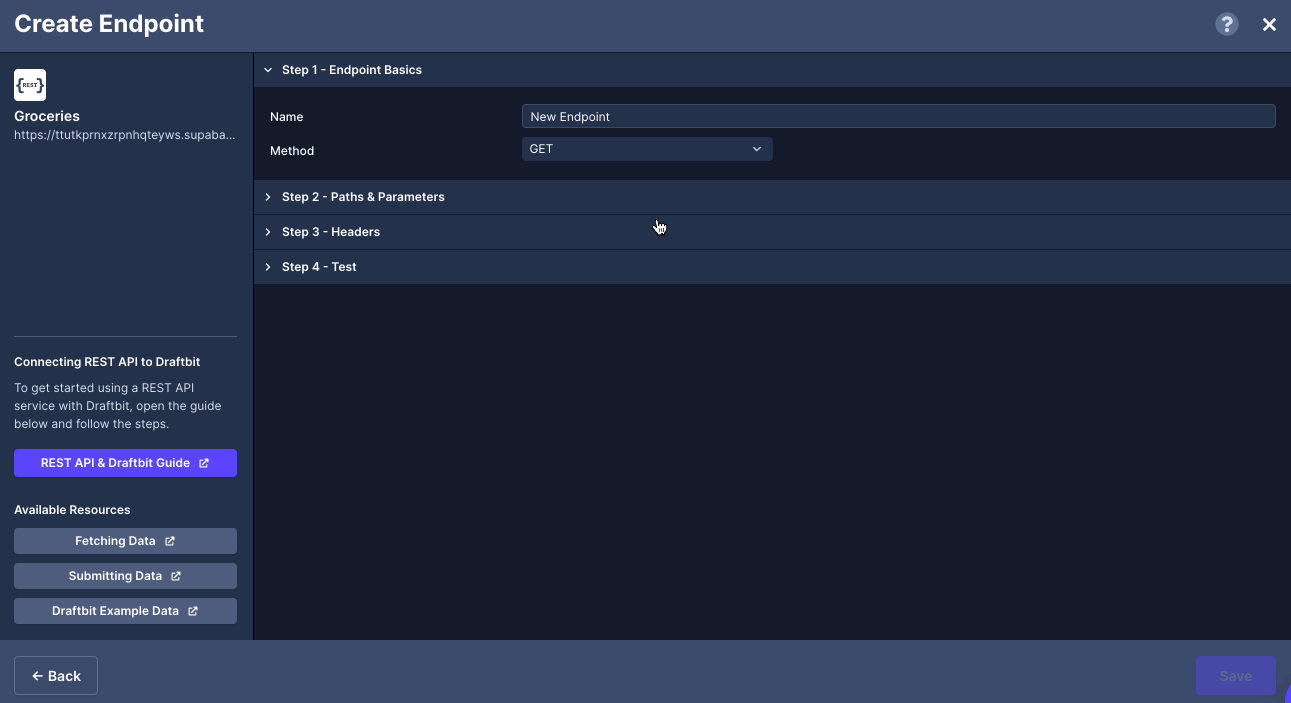

Creating a GET request endpoint

In the Builder, on the app screen:

  • Select the Fetch component in the Components tree and go to the Data tab from Properties Panel.
  • For Service, select the name of the Supabase Service.
  • For Endpoint, select the endpoint you want to fetch the data from.
  • Select the List component in the Components and go to the Data tab from Properties Panel. In Data, select Top-Level Response from the dropdown menu.
  • Then, select the Text component in the Components and then go to the Data tab from the Properties Panel.
  • Add a {{varName}} value (inside the curly braces) to represent a column field from the Supabase. For example, add {{title}} to represent the column name from the Supabase Base.
  • Under Variables, you will see the variable name defined in the previous step. From the dropdown menu, select the appropriate field that represents the data field.

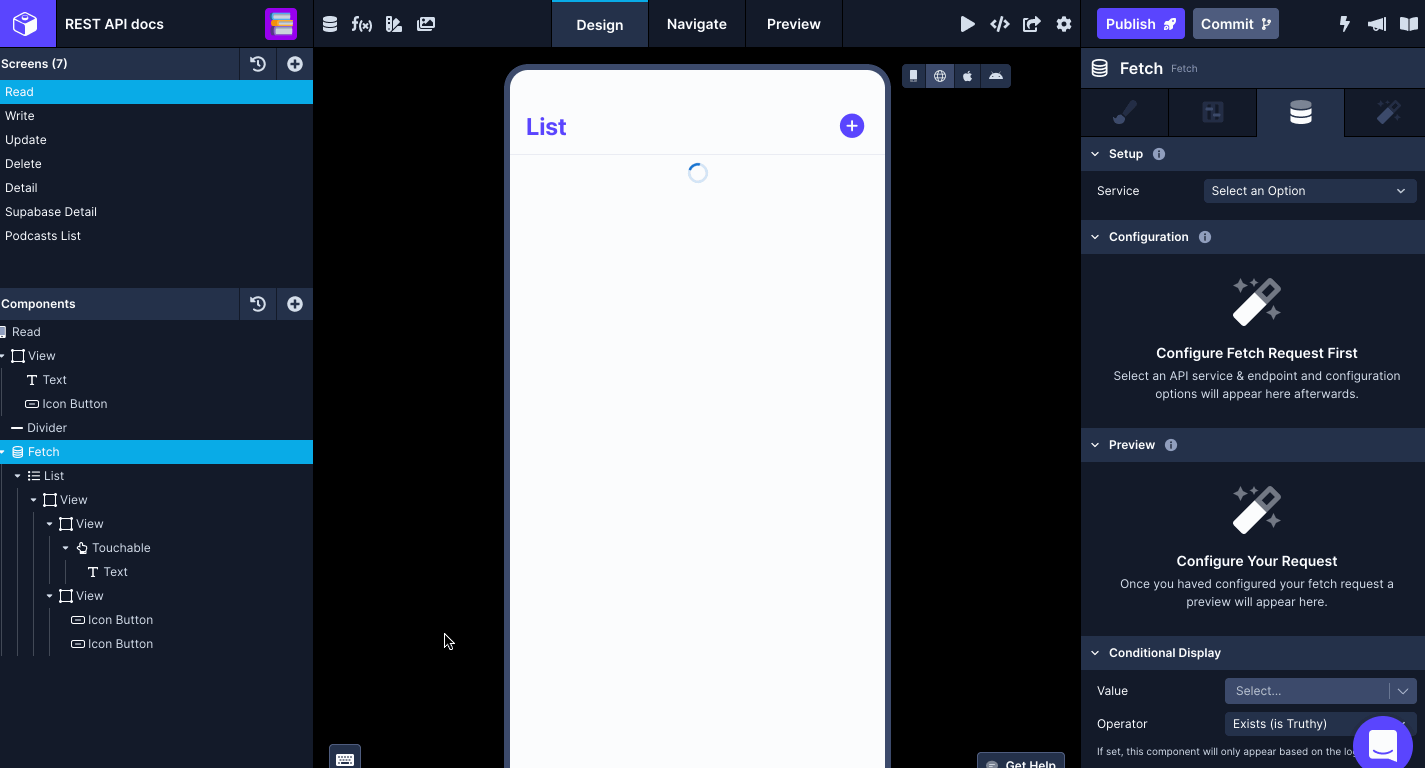

Fetching data on app screen

GET request to fetch single row#

Open the API & Cloud services modal from the top menu, select the Supabase service, and then:

  • Click Add endpoint.
  • In Step 1: enter a name for the endpoint.
  • In Step 2: add the /groceries/column-name=eq.{{column-name}} variable. Then, add a Test value for the {{column-name}}. For example, it can be the title or the id.
  • In Step 4: click the Test button next to the Endpoint input to verify the response coming from the Supabase.
  • Click Save.

Creating endpoint to fetch a single row

On app screen:

  • Select the Fetch component in the Components tree and go to the Data tab from Properties Panel
  • For Service, select the name of the Supabase Service.
  • For endpoint, select the endpoint you want to fetch the data from.
  • Set the value for the id in the Configuration > URL Structure section to Navigation > id.
  • Select the List component in the Components and go to the Data tab from Properties Panel. In Data, select Top-Level Response from the dropdown menu.
  • Then, select the Text component in the Components and then go to the Data tab from the Properties Panel.
  • Add a {{varName}} value (inside the curly braces) to represent the column field from the Supabase. For example, add {{title}} to represent the field and value from the Supabase data table.
  • Under Variables, you will see the variable name defined in the previous step. From the dropdown menu, select the appropriate field that represents the data field.

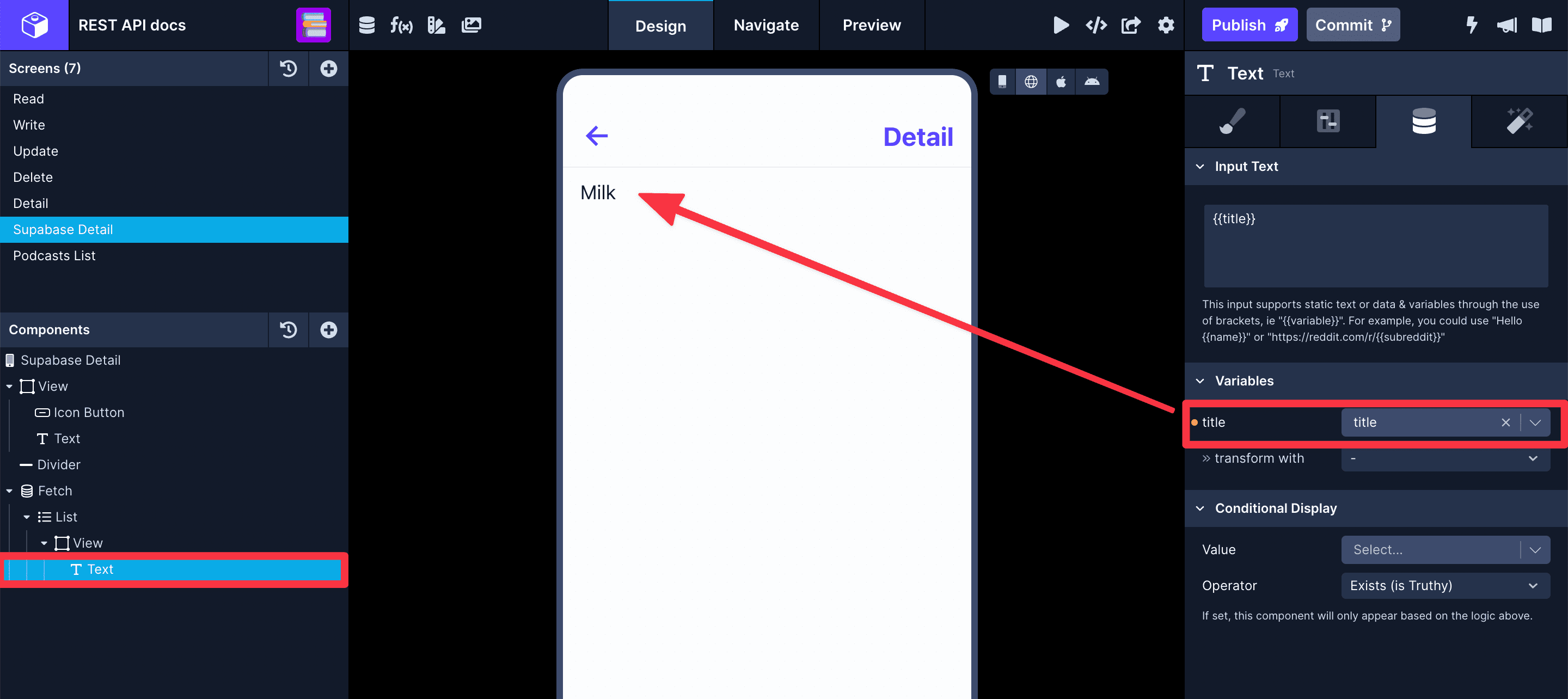

Displaying data from single row

POST request to submit a new row#

Submitting new Data from the Draftbit app to Supabase's REST API requires the request to be sent using the HTTP POST method.

For this section, you need to use at least one component that accepts user input and has a Field Name prop to POST data using Supabase REST API.

You can use one of the following components in Draftbit:

  • Text Input
  • Text Area/Text Field
  • Checkbox
  • Slider
  • Radio Button Group
  • Radio Button

In addition, you need a Touchable component like a Button to attach the POST action. After you have created these components, we will create the POST endpoint:

  • Click Add endpoint.
  • In Step 1: enter a name for the endpoint and select the Method to POST.
  • In Step 2: enter the base name as path: /groceries.
  • In Step 3: add a valid Body structure to submit a POST request. Add one or many {{variable}} for test values. Click Body Preview to validate the structure of the Body in the request. For the example, let's create a variable called {{inputValue}}.
  • In Step 4: to see the new row added to the Supabase data table as JSON response inside the Builder, you have to pass a new header called Prefer with its value as return=representation.
  • In Step 5: click the Test button next to the Endpoint input to verify the response coming from the Supabase and click Save.

Make a POST request to add new data to Supabase database

Once you follow the above steps, you should get a 200 OK response with exactly the new record as a JSON you have entered for your schema.

An example of how Body in a request will look like:


_10
{
_10
"title": {{inputValue}}
_10
}

Where title is the column name in your Supabase database table.

In Draftbit, using a Touchable or a Button component, you can trigger the action API Request to submit the data to the endpoint.

Now, there is a working POST request in Draftbit. Map its response to the components on your screen in Draftbit.

First, for each input component, make sure you have set the Field Names (found in the Configs tab, second from the left) to unique values. For example, in the screen below, there is one TextInput field component with the value of the Field Name prop of textInputValue.

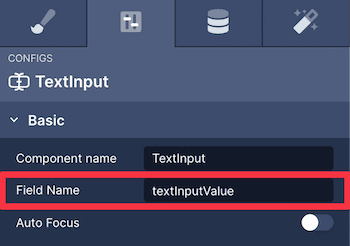

Field Name prop on a TextInput component

Next, on your Button component, go to the Interactions tab in the Properties panel located on the far-right-hand side. Select an Action called API request.

In the API request action:

  • In Service, select the name to Supabase API Service.
  • In Endpoint, select the name of the Endpoint.
  • Then add the configuration for the body request to be sent by selecting the values for {{inputValue}}.

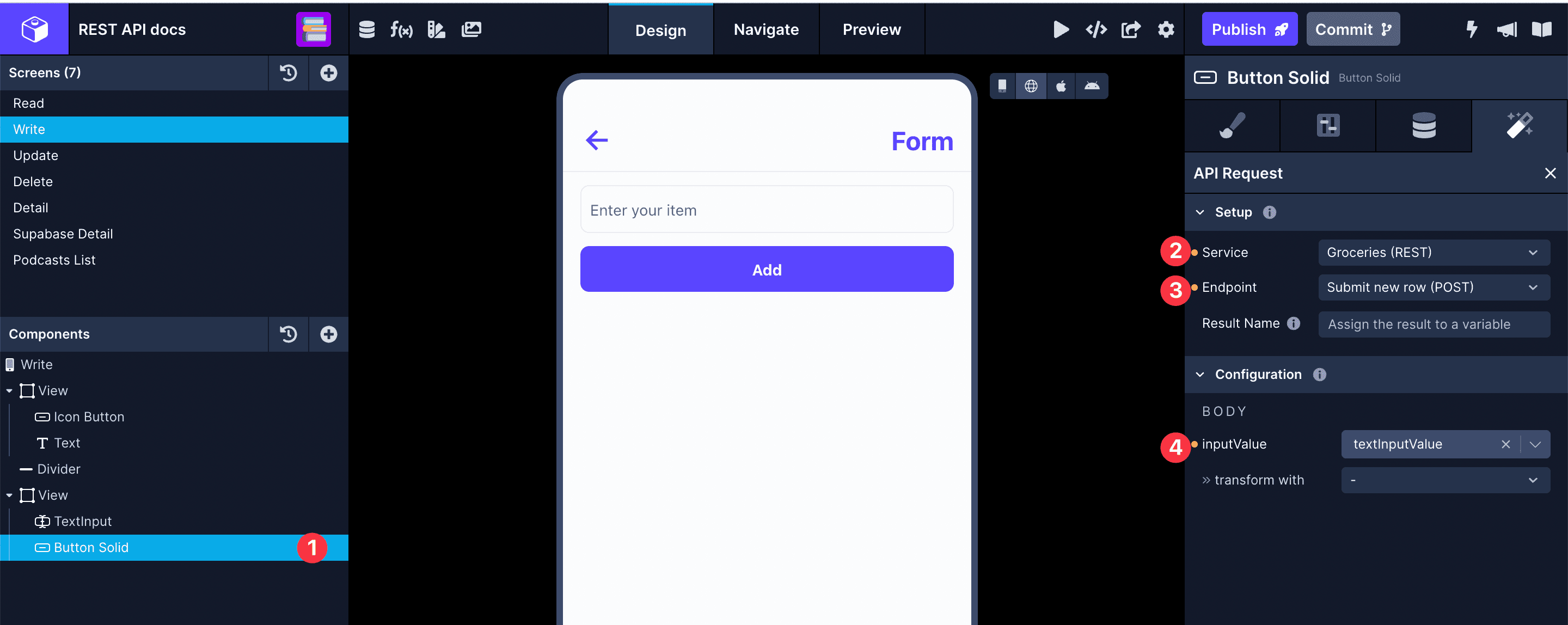

Setting up the API Request to send a POST request

After completing the above steps, you can trigger the API request to submit new data to the Supabase database.

PATCH request to Update a new record#

Updating an existing record from the Draftbit app to Supabase's REST API requires the request to be sent using the HTTP PATCH method.

After you have created your screen components in the Draftbit builder, open the Supabase service and make the PATCH endpoint:

  • Click Add endpoint.
  • In Step 1: enter a name for the endpoint and select the Method to PATCH.
  • In Step 2: enter the base name as path: /groceries?id=eq.{{id}}, where id is the value of an existing record in the database.
  • In Step 3: add a valid Body structure to submit a PATCH request. Add one or many {{variable}} for test values depending on the structure of your app. Click Body Preview to validate the structure of the Body in the request. For the example, let's create a variable called {{inputValue}}.
  • In Step 5: click the Test button next to the Endpoint input to verify the response coming from the Supabase and click Save.

Creating an endpoint for PATCH request

Next, on your Button component, go to the Interactions tab in the Properties panel located on the far-right-hand side. Select an Action called API request.

In the API request action:

  • In Service, select the name to Supabase API Service.
  • In Endpoint, select the name of the Endpoint.
  • Then add the configuration for the query param, and the body request to be sent by selecting the values for {{inputValue}}.

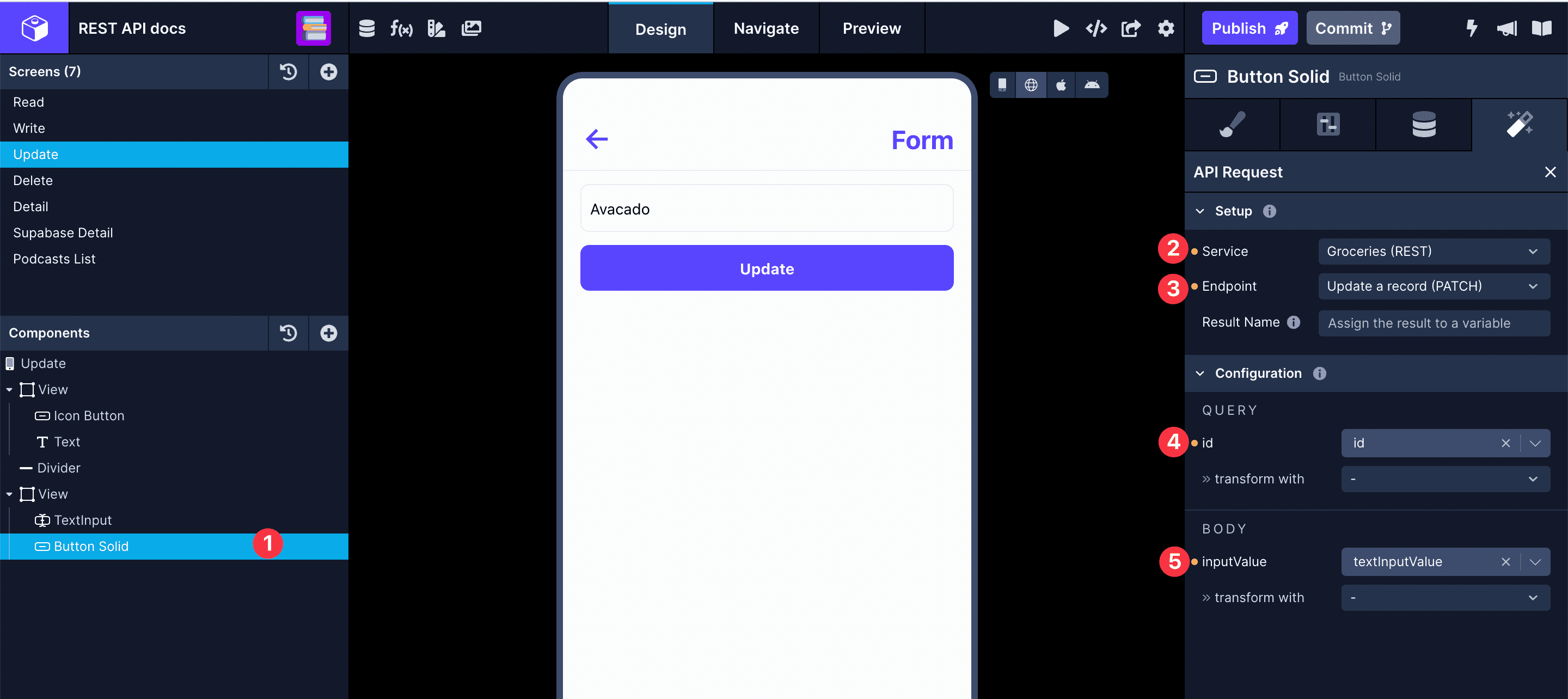

Setting up the API Request to send a PATCH request

After completing the above steps, you can trigger the API request to update existing data in the Supabase database.

DELETE request to remove an existing record#

The DELETE request is to the Supabase with an item's column-name to remove that particular record from the table. You can use a filter from Supabase to filter the value of a specific column-name.

After you have created your screen components in the Draftbit builder, open the Supabase service and create the DELETE endpoint:

  • Click Add endpoint.
  • In Step 1: enter a name for the endpoint and select the Method to DELETE.
  • In Step 2: add /groceries/columnName=eq.{{columnName}}. Then, add a Test value for the {{columnName}}. For example, the {{columnName}} here can be id of the record.
  • In Step 4: click the Test button next to the Endpoint input to verify the response from the Supabase.
  • Click Save.

Creating an endpoint for DELETE request

Next, on your Button component, go to the Interactions tab in the Properties panel located on the far-right-hand side. Select an Action called API request.

In the API Request action:

  • In Service, select the name to Supabase API Service.
  • In Endpoint, select the name of the Endpoint.
  • Then, add the configuration for the query request to be sent by selecting a value. For example, in this case it will be the id of the record coming from the Navigation parameter.

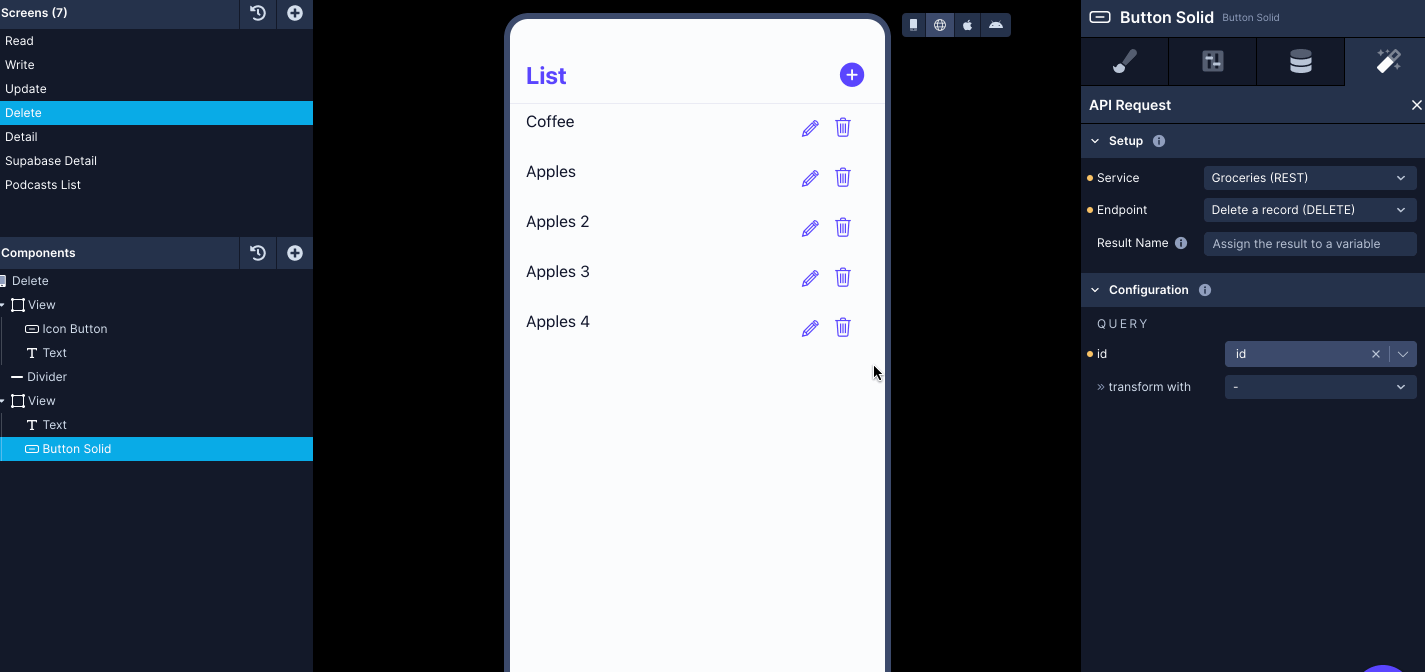

Setting up the API Request to send a DELETE request
