This tutorial demonstrates how to build a basic user management app. The app authenticates and identifies the user, stores their profile information in the database, and allows the user to log in, update their profile details, and upload a profile photo. The app uses:
Supabase Database - a Postgres database for storing your user data and Row Level Security so data is protected and users can only access their own information.
Supabase Auth - users log in through magic links sent to their email (without having to set up passwords).
Before we start building we're going to set up our Database and API. This is as simple as starting a new Project in Supabase and then creating a "schema" inside the database.
Now we are going to set up the database schema. We can use the "User Management Starter" quickstart in the SQL Editor, or you can just copy/paste the SQL from below and run it yourself.
Now that you've created some database tables, you are ready to insert data using the auto-generated API.
We just need to get the Project URL and anon key from the API settings.
Then let's install the only additional dependency: supabase-js
npm install @supabase/supabase-js
And finally we want to save the environment variables in the environment.ts file.
All we need are the API URL and the anon key that you copied earlier.
These variables will be exposed on the browser, and that's completely fine since we have Row Level Security enabled on our Database.
environment.ts
export const environment = {
production: false,
supabaseUrl: 'YOUR_SUPABASE_URL',
supabaseKey: 'YOUR_SUPABASE_KEY',
}
Now that we have the API credentials in place, let's create a SupabaseService with ionic g s supabase to initialize the Supabase client and implement functions to communicate with the Supabase API.
src/app/supabase.service.ts
import { Injectable } from '@angular/core'
import { LoadingController, ToastController } from '@ionic/angular'
import { AuthChangeEvent, createClient, Session, SupabaseClient } from '@supabase/supabase-js'
import { environment } from '../environments/environment'

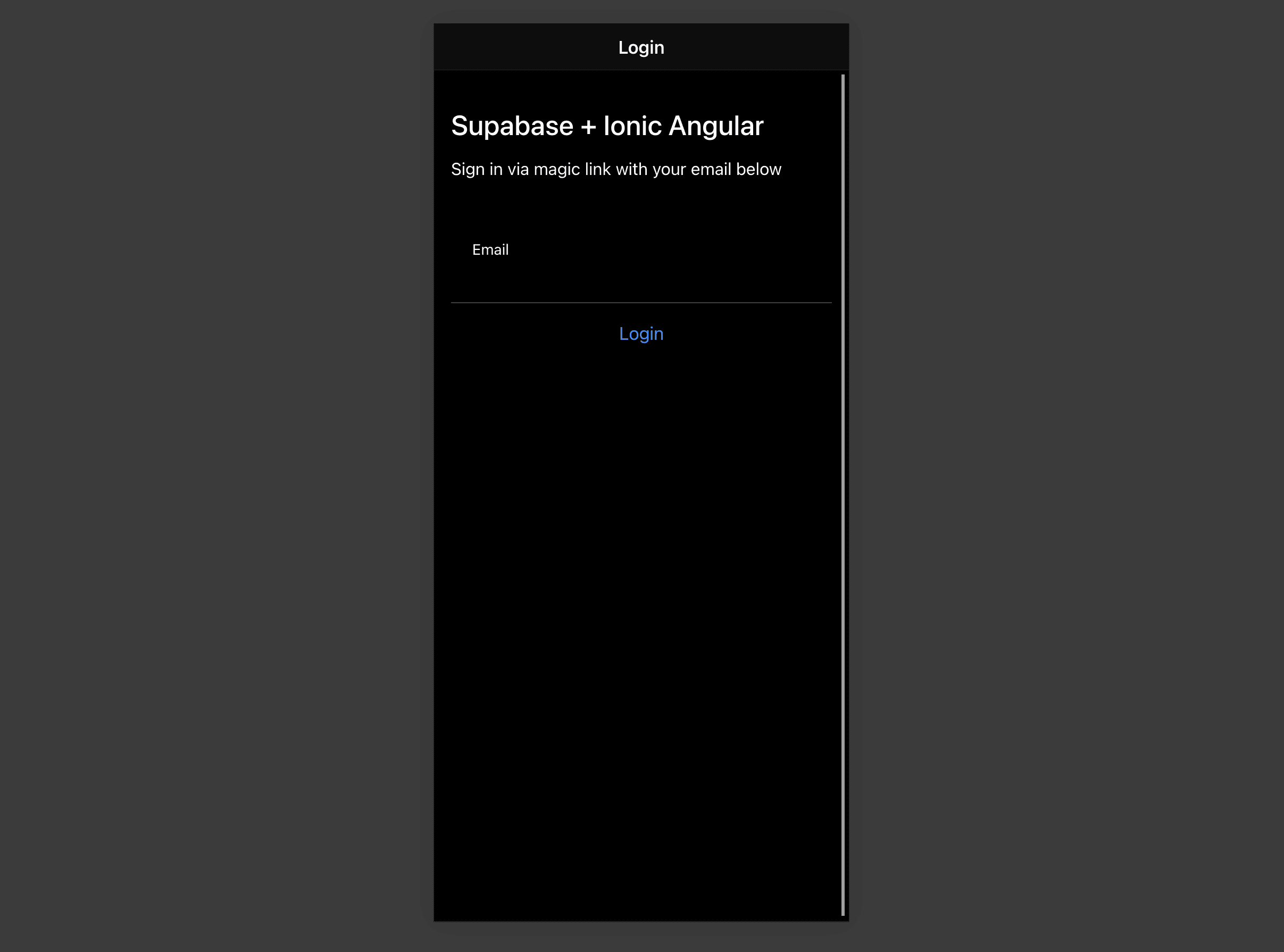

Let's set up an route to manage logins and sign ups. We'll use Magic Links, so users can sign in with their email without using passwords.
Create an LoginPage with ionic g page login Ionic CLI command.
This guide will show the template inline, but the example app will have templateUrls
src/app/login/login.page.ts
import { Component, OnInit } from '@angular/core'
import { SupabaseService } from '../supabase.service'
@Component({
selector: 'app-login',
template: `
<ion-header>
<ion-toolbar>
<ion-title>Login</ion-title>
</ion-toolbar>
</ion-header>
<ion-content>
<div class="ion-padding">
<h1>Supabase + Ionic Angular</h1>
<p>Sign in via magic link with your email below</p>
After a user is signed in we can allow them to edit their profile details and manage their account.
Create an AccountComponent with ionic g page account Ionic CLI command.
src/app/account.component.ts
import { Component, OnInit } from '@angular/core'
import { Router } from '@angular/router'
import { Profile, SupabaseService } from '../supabase.service'
Let's create an avatar for the user so that they can upload a profile photo.
First install two packages in order to interact with the user's camera.
npm install @ionic/pwa-elements @capacitor/camera
CapacitorJS is a cross platform native runtime from Ionic that enables web apps to be deployed through the app store and provides access to native deavice API.
Ionic PWA elements is a companion package that will polyfill certain browser APIs that provide no user interface with custom Ionic UI.
With those packages installed we can update our main.ts to include an additional bootstapping call for the Ionic PWA Elements.
src/main.ts
import { enableProdMode } from '@angular/core'
import { platformBrowserDynamic } from '@angular/platform-browser-dynamic'
import { AppModule } from './app/app.module'
import { environment } from './environments/environment'
import { defineCustomElements } from '@ionic/pwa-elements/loader'
defineCustomElements(window)
if (environment.production) {
enableProdMode()
}
platformBrowserDynamic()
.bootstrapModule(AppModule)
.catch((err) => console.log(err))
Then create an AvatarComponent with this Ionic CLI command:
ionic g component avatar --module=/src/app/account/account.module.ts --create-module
src/app/avatar.component.ts
import { Component, EventEmitter, Input, OnInit, Output } from '@angular/core'
import { DomSanitizer, SafeResourceUrl } from '@angular/platform-browser'
import { SupabaseService } from '../supabase.service'
import { Camera, CameraResultType } from '@capacitor/camera'
If you upload additional profile photos, they'll accumulate
in the avatars bucket because of their random names with only the latest being referenced
from public.profiles and the older versions getting orphaned.
To automatically remove obsolete storage objects, extend the database
triggers. Note that it is not sufficient to delete the objects from the
storage.objects table because that would orphan and leak the actual storage objects in
the S3 backend. Instead, invoke the storage API within Postgres via the http extension.
Enable the http extension for the extensions schema in the Dashboard.
Then, define the following SQL functions in the SQL Editor to delete
storage objects via the API:
create or replace function delete_storage_object(bucket text, object text, out status int, out content text)
returns record
language 'plpgsql'
security definer
as $$
declare
project_url text := '<YOURPROJECTURL>';
service_role_key text := '<YOURSERVICEROLEKEY>'; -- full access needed
url text := project_url||'/storage/v1/object/'||bucket||'/'||object;
create or replace function delete_avatar(avatar_url text, out status int, out content text)
returns record
language 'plpgsql'
security definer
as $$
begin
select
into status, content
result.status, result.content
from public.delete_storage_object('avatars', avatar_url) as result;
end;
$$;
Next, add a trigger that removes any obsolete avatar whenever the
profile is updated or deleted:
create or replace function delete_old_avatar()
returns trigger
language 'plpgsql'
security definer
as $$
declare
status int;
content text;
begin
if coalesce(old.avatar_url, '') <> ''
and (tg_op = 'DELETE' or (old.avatar_url <> new.avatar_url)) then
select
into status, content
result.status, result.content
from public.delete_avatar(old.avatar_url) as result;
if status <> 200 then
raise warning 'Could not delete avatar: % %', status, content;
end if;
end if;
if tg_op = 'DELETE' then
return old;
end if;
return new;
end;
$$;
create trigger before_profile_changes
before update of avatar_url or delete on public.profiles
for each row execute function public.delete_old_avatar();
Finally, delete the public.profile row before a user is deleted.
If this step is omitted, you won't be able to delete users without
first manually deleting their avatar image.
create or replace function delete_old_profile()
returns trigger
language 'plpgsql'
security definer
as $$
begin
delete from public.profiles where id = old.id;
return old;
end;
$$;
create trigger before_delete_user
before delete on auth.users
for each row execute function public.delete_old_profile();
At this stage you have a fully functional application!
